Nothing swings out
Perfect beside walkways, decks and balconies where an outward-opening sash would be in the way.
WINDOWS · ALUMINUM / VINYL

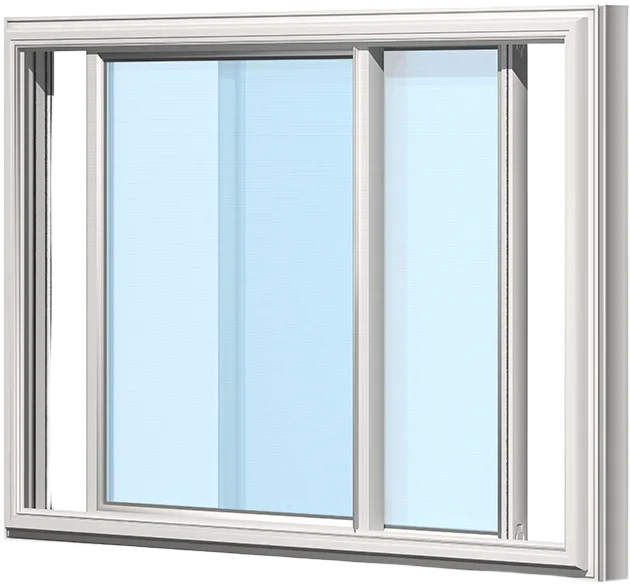

Horizontal sliding windows
Sashes that glide sideways on a track, with nothing swinging into a walkway, deck or garden. A simple, space-conscious window for wide openings.
- Installed by our own crew
- Free on-site consultation
- Measured and quoted for your opening
THE STYLE
Horizontal sliding windows
Horizontally sliding panels for spaces where an outward-opening window is less practical.
WHY HORIZONTAL SLIDING WINDOWS
What they do well.
Easy operation
A gentle push slides the sash open; there’s no crank or hinge to wear.
Wide openings
Well suited to wide, shorter openings such as basements and over counters.

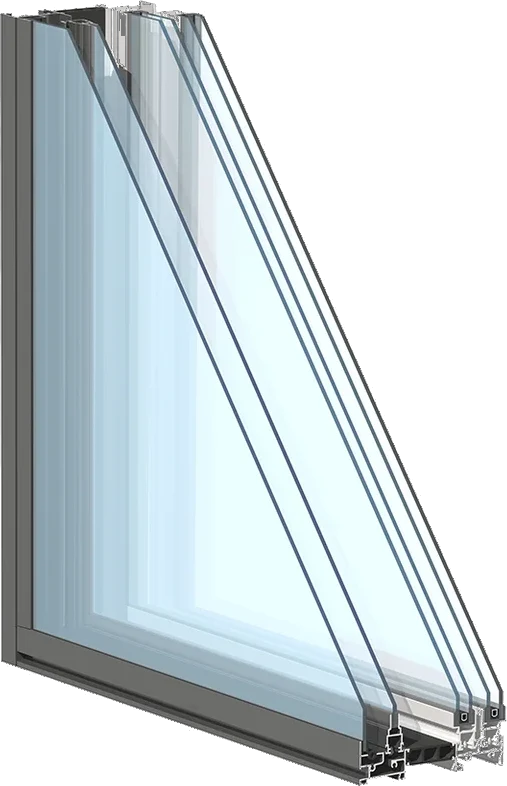

51 mmThermal break on the Regal 6000 aluminum series
152 mmDeepest aluminum frame (6000 series, 6″)
TripleGlazing available on every Regal aluminum series
40+Years in business for Regal, a family-run Ontario company
- Thermal breaks of 13, 32 and 51 mm on the 4500, 5250 and 6000 series
- Screw-spline joinery and replaceable compression seals
- Optional pressure-equalized rain screen
- Glazed from the interior; different colours inside and out
SPECIFICATIONS
Choose your series.
From the supplier product lines we quote. Select a series to see how it’s built. Your exact configuration, glass and finish are confirmed in your quotation.
REGAL · ALUMINUM

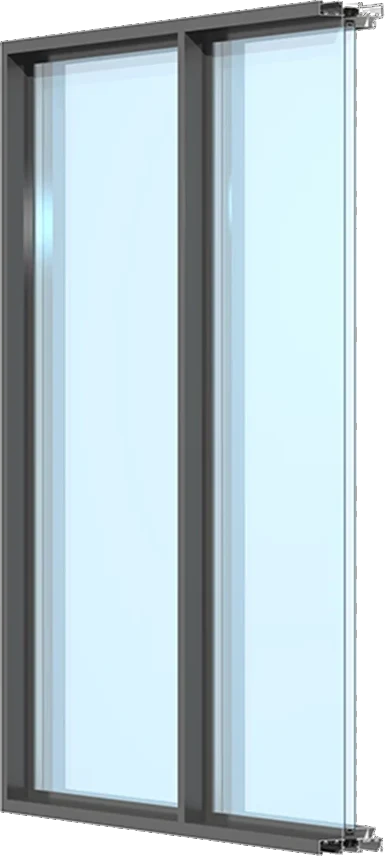

5250 Series
A 5¼″ aluminum frame with a 32 mm thermal break, accepts 25.4 mm (1″) and 41.3 mm (1⅝″) overall glazing.
- Frame depth
- 133mm
- Thermal break
- 32mm
- Glass unit
- 1″ / 1⅝″
INSIDE THE FRAME
Built to insulate.
A 32 mm thermal break separates the inside and outside of the frame, cutting the path heat takes through the aluminum and letting each side carry its own colour.
Replaceable compression seals and interior glazing keep the window serviceable for the long run.
32 mmThermal break
DRAWN TO SCALE
Depth through the wall.
Frame depth is measured from the inside face to the outside face. It affects how the window meets your wall, and how thick a glass unit it can hold.
Accepts 25.4 mm (1″) and 41.3 mm (1⅝″) overall glazing. Double (1″) or triple (1⅝″) glazing.
133 mmFrame depth · 5¼″
EVERYTHING IN THE 5250 SERIES
Extruded screw-spline joinery
Glazed from the interior
Replaceable, high-quality compression seals
Optional pressure-equalized rain screen design
32 mm thermal break allows different interior and exterior finishes
Strap anchor option for easier installation
Suited to punched-opening applications
Finishes: Duracron, Acrynar, Duranar (XL) or anodized
Regal states testing to NAFS-CW, AAMA and CSA requirements
CONFIGURATIONS · HOVERTAP TO OPEN
ADD SOME COLOUR
Gloss WhitePPG Duracron K1285
WhitePPG Duracron K11625
Norco BeigePPG Duracron K30930
Gloss CreamPPG Duracron K31029
IvoryPPG Duracron K31040
SG IvoryPPG Duracron K30289
LG CharcoalPPG Duracron K7390
Light Bronze MetallicPPG Duracron K70632
BeigePPG Duracron K30618
LG Bronze #42PPG Duracron K70634
Metallic BrownPPG Duracron K71232
LG BrownPPG Duracron K72088
Hurd BronzePPG Duracron K72164
Oak BrownPPG Duracron K72204
LG BlackPPG Duracron K90212
LG Black MetallicPPG Duracron K90342
SG BlackPPG Duracron K90421
Gray MetallicPPG Duracron K20794
Custom colour matchMatched to your sample
Regal’s standard Duracron colours (PPG codes shown); custom colours on request. On-screen colours are approximate, so confirm with a physical sample.
COMPARE FRAME DEPTHS
Manufacturer figures, checked 2026-10-05: Regal aluminum windows catalogue · Regal Windows & Doors
Book a free on-site measureWe visit, measure and send an itemized quotation.
647 830 1417Book a visit
QUESTIONS & ANSWERS
Horizontal sliding windows:
good to know.
Have a question that isn’t here? Talk to us.
What is a horizontal sliding window?
A window with one or two sashes that slide sideways along a track to open.
Single or double slider?
In a single slider one sash moves; in a double slider both do. Both are available in our vinyl series.
Are sliding windows good for basements?
Yes. Their wide, short proportions suit many basement openings. Egress size is confirmed against the building code when we measure.
How do I keep sliding windows working smoothly?
Keep the track and drainage holes clear of dirt and debris, and check the weatherstripping each fall.
