Full ventilation
The whole sash swings open, so you get the full height of the opening for fresh air.
WINDOWS · ALUMINUM / VINYL
Casement windows
Side-hinged windows that crank open to the outside for full-height ventilation, then press tightly against the frame when closed. A versatile choice for kitchens, bedrooms and living spaces.
- Installed by our own crew
- Free on-site consultation
- Measured and quoted for your opening
THE STYLE
Casement windows
Side-hinged windows that open outward. A versatile choice for everyday ventilation in homes and selected building applications.
WHY CASEMENT WINDOWS
What they do well.
A tight seal
When locked, the sash is drawn against the frame weatherstripping, which helps keep drafts out in winter.
Easy to reach
A crank handle makes them simple to open over a counter or a deep sill.
51 mmThermal break on the Regal 6000 aluminum series
152 mmDeepest aluminum frame (6000 series, 6″)
TripleGlazing available on every Regal aluminum series
40+Years in business for Regal, a family-run Ontario company
- Thermal breaks of 13, 32 and 51 mm on the 4500, 5250 and 6000 series
- Screw-spline joinery and replaceable compression seals
- Optional pressure-equalized rain screen
- Glazed from the interior; different colours inside and out
SPECIFICATIONS
Choose your series.
From the supplier product lines we quote. Select a series to see how it’s built. Your exact configuration, glass and finish are confirmed in your quotation.
REGAL · ALUMINUM

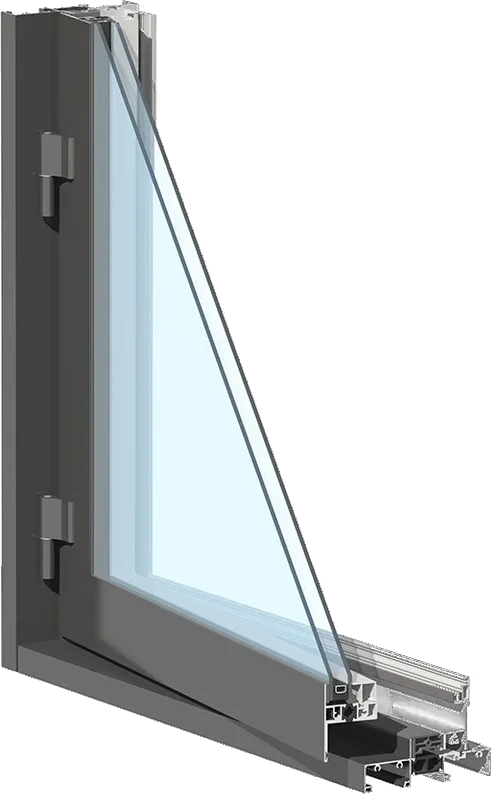

5250 Series
A 5¼″ aluminum frame with a 32 mm thermal break, accepts 25.4 mm (1″) and 41.3 mm (1⅝″) overall glazing.
- Frame depth
- 133mm
- Thermal break
- 32mm
- Glass unit
- 1″ / 1⅝″
INSIDE THE FRAME
Built to insulate.
A 32 mm thermal break separates the inside and outside of the frame, cutting the path heat takes through the aluminum and letting each side carry its own colour.
Replaceable compression seals and interior glazing keep the window serviceable for the long run.
32 mmThermal break
DRAWN TO SCALE
Depth through the wall.
Frame depth is measured from the inside face to the outside face. It affects how the window meets your wall, and how thick a glass unit it can hold.
Accepts 25.4 mm (1″) and 41.3 mm (1⅝″) overall glazing. Double (1″) or triple (1⅝″) glazing.
133 mmFrame depth · 5¼″
EVERYTHING IN THE 5250 SERIES
Extruded screw-spline joinery
Glazed from the interior
Replaceable, high-quality compression seals
Optional pressure-equalized rain screen design
32 mm thermal break allows different interior and exterior finishes
Strap anchor option for easier installation
Suited to punched-opening applications
Finishes: Duracron, Acrynar, Duranar (XL) or anodized
Regal states testing to NAFS-CW, AAMA and CSA requirements
CONFIGURATIONS · HOVERTAP TO OPEN
ADD SOME COLOUR
Gloss WhitePPG Duracron K1285
WhitePPG Duracron K11625
Norco BeigePPG Duracron K30930
Gloss CreamPPG Duracron K31029
IvoryPPG Duracron K31040
SG IvoryPPG Duracron K30289
LG CharcoalPPG Duracron K7390
Light Bronze MetallicPPG Duracron K70632
BeigePPG Duracron K30618
LG Bronze #42PPG Duracron K70634
Metallic BrownPPG Duracron K71232
LG BrownPPG Duracron K72088
Hurd BronzePPG Duracron K72164
Oak BrownPPG Duracron K72204
LG BlackPPG Duracron K90212
LG Black MetallicPPG Duracron K90342
SG BlackPPG Duracron K90421
Gray MetallicPPG Duracron K20794
Custom colour matchMatched to your sample
Regal’s standard Duracron colours (PPG codes shown); custom colours on request. On-screen colours are approximate, so confirm with a physical sample.
COMPARE FRAME DEPTHS
Manufacturer figures, checked 2026-10-05: Regal aluminum windows catalogue · Regal Windows & Doors
Book a free on-site measureWe visit, measure and send an itemized quotation.
647 830 1417Book a visit
What is a casement window?
A casement window is hinged on one side and opens outward with a crank or lever, like a door. It gives full-height ventilation and seals tightly when closed.
Aluminum or vinyl casement windows?
Vinyl is a cost-effective, low-maintenance choice for most homes. Aluminum offers slimmer frames, larger glass and a wide range of factory colours. We’ll recommend what suits your home and budget.
Where do casement windows work best?
Kitchens, bedrooms and any opening where you want maximum airflow. They also pair well with fixed picture windows in a combined unit.
Can casement windows be used for bedroom egress?
Often yes, because the whole sash opens. Egress depends on the clear opening size required by the building code, so we confirm it when we measure.
